Description

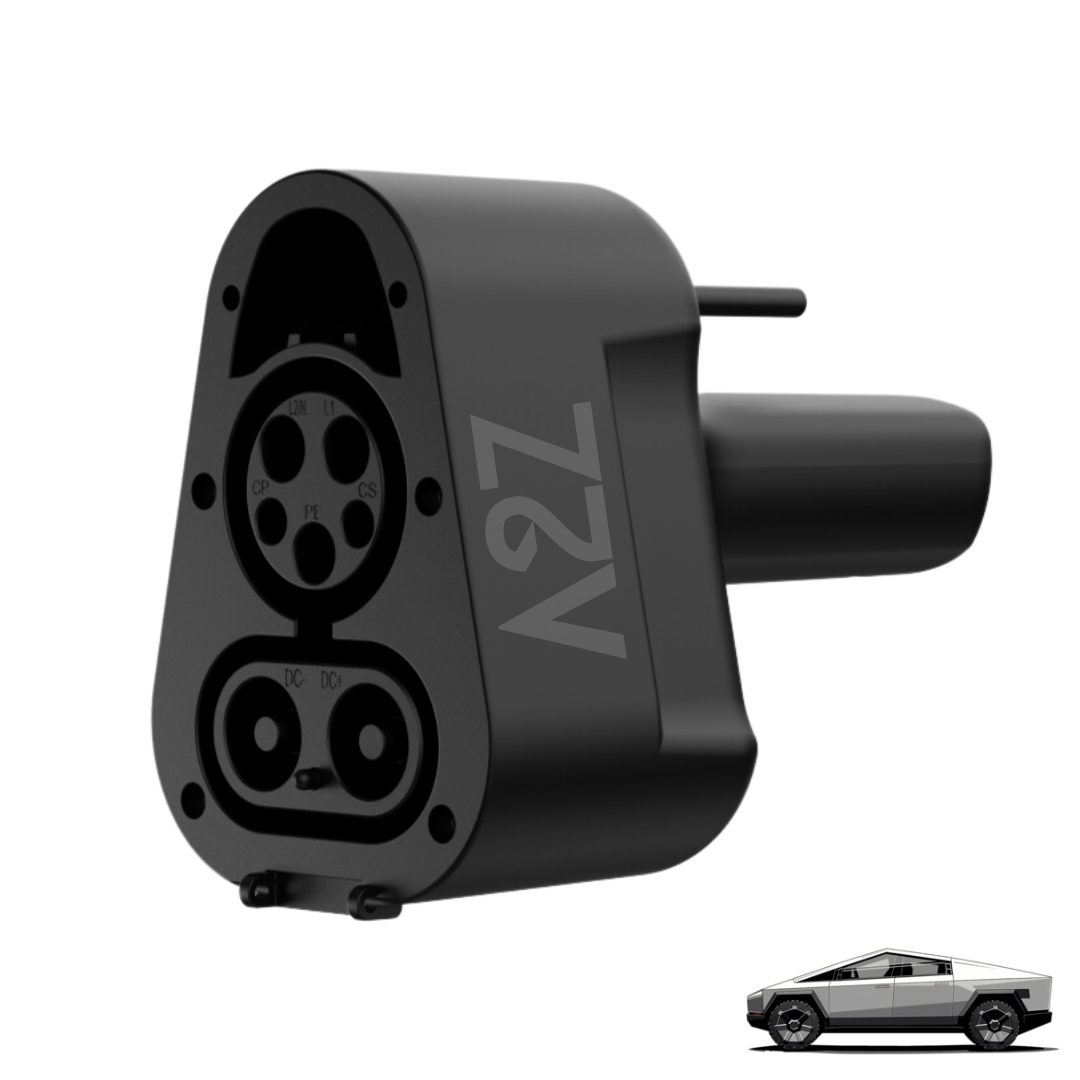

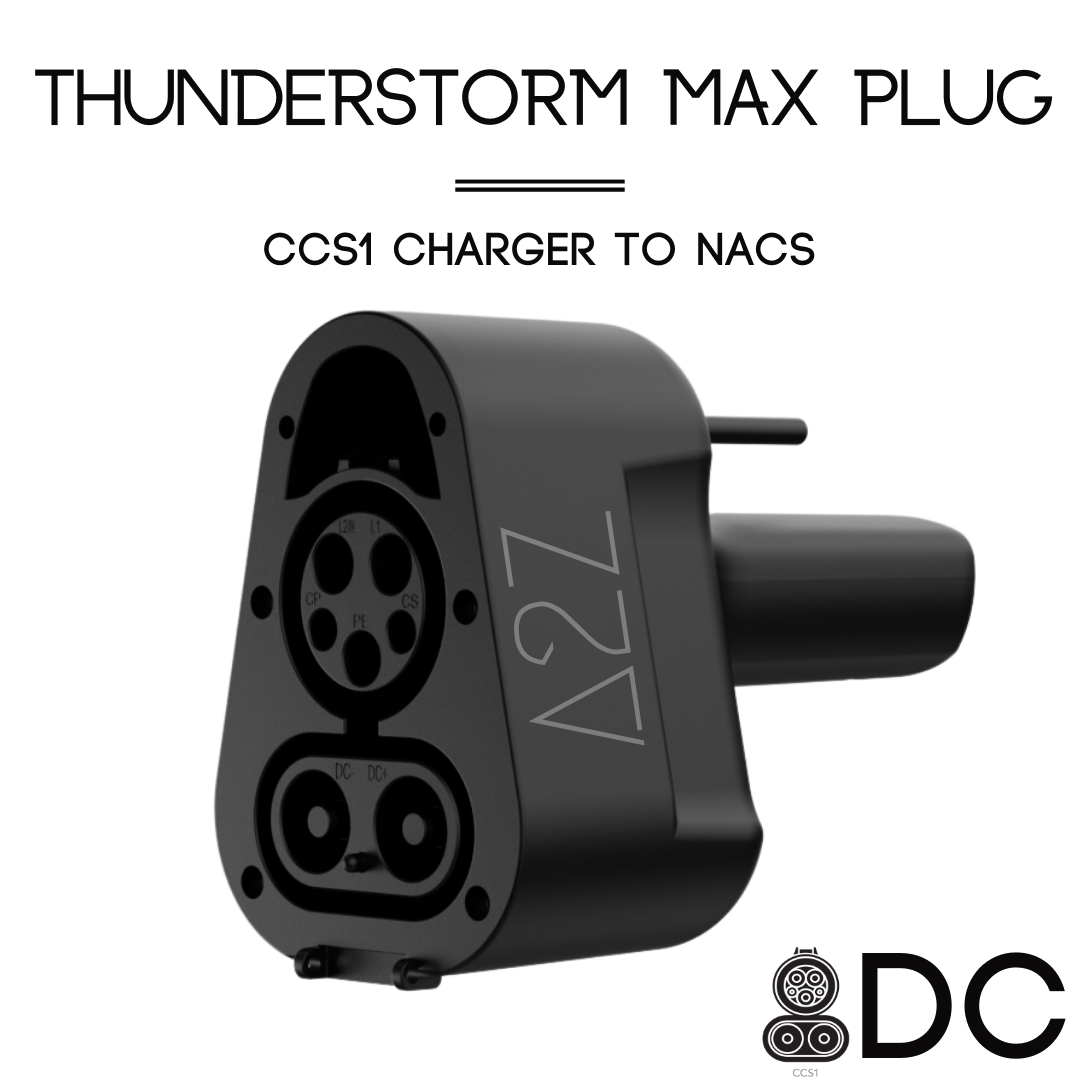

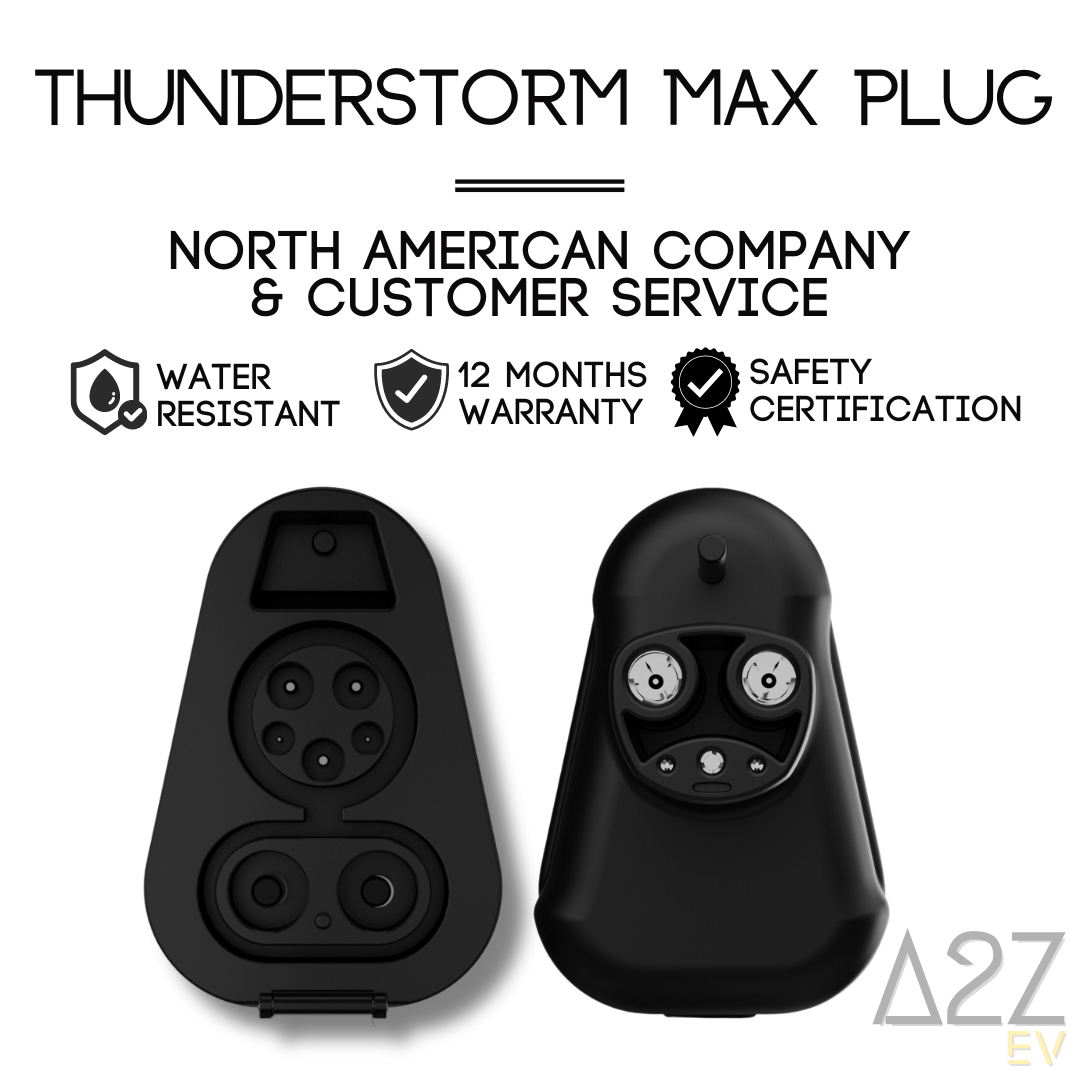

The first UL2252/CSA-C22.2 certified CCS1 to NACS adapter.

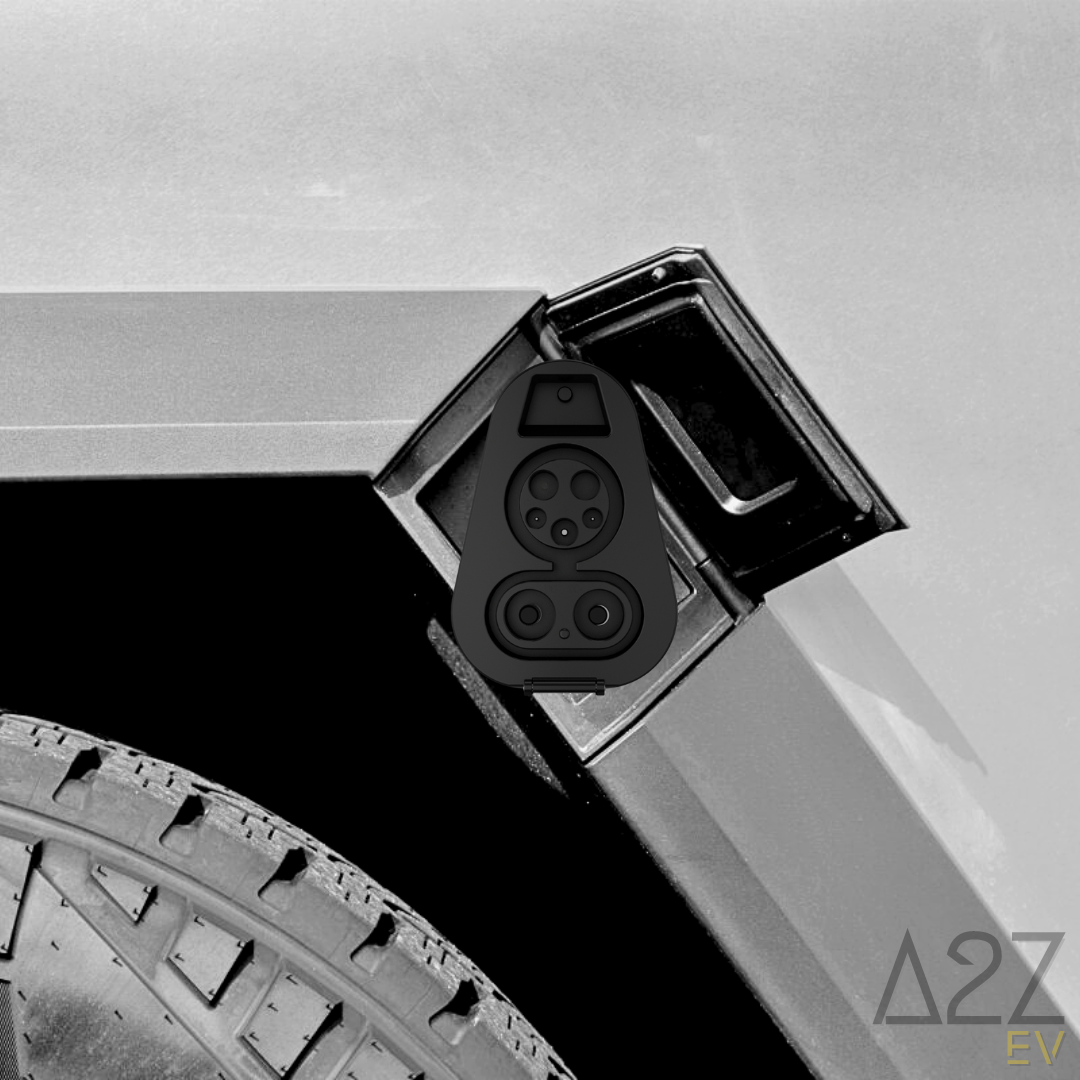

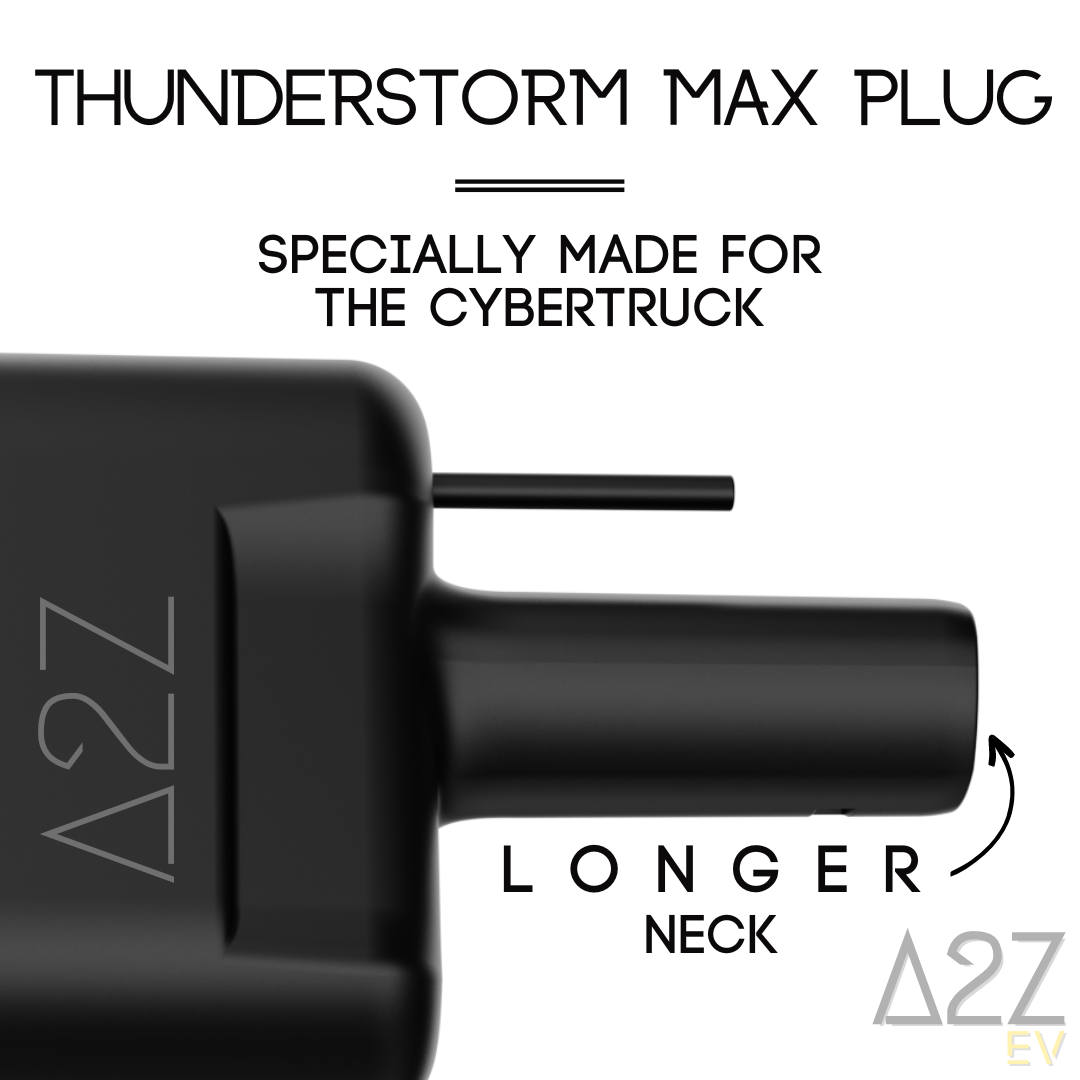

Important notice : This adapter is specifically compatible with the Cybertruck, it does indeed clear the charge port's design and fits perfectly without the need of any other adapter.
Key Features :
- Power : DC/Level 3 fast charging

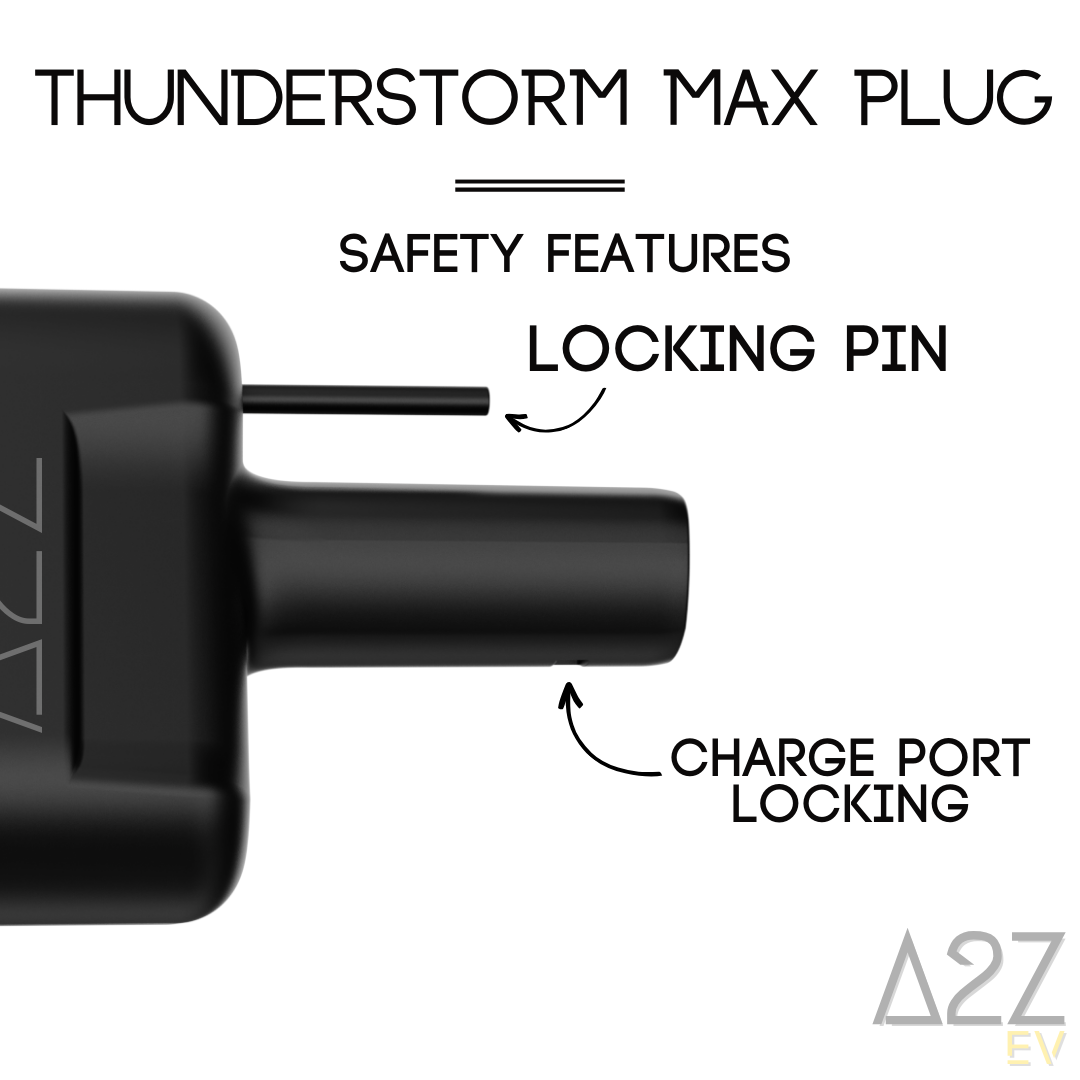

- Safety and Security: Our adapter locks the CCS latch once fully connected, ensuring no unplanned disconnections or thefts. Includes an interlock safety pin preventing accidental removal of the charging connector while charging. Unplug it with authorization from your car, phone, or charging station's control panel.
- Protection : IP54 (mating) & IP67 (enclosing). Includes a hard case.
Requirements :
- For the North American market.

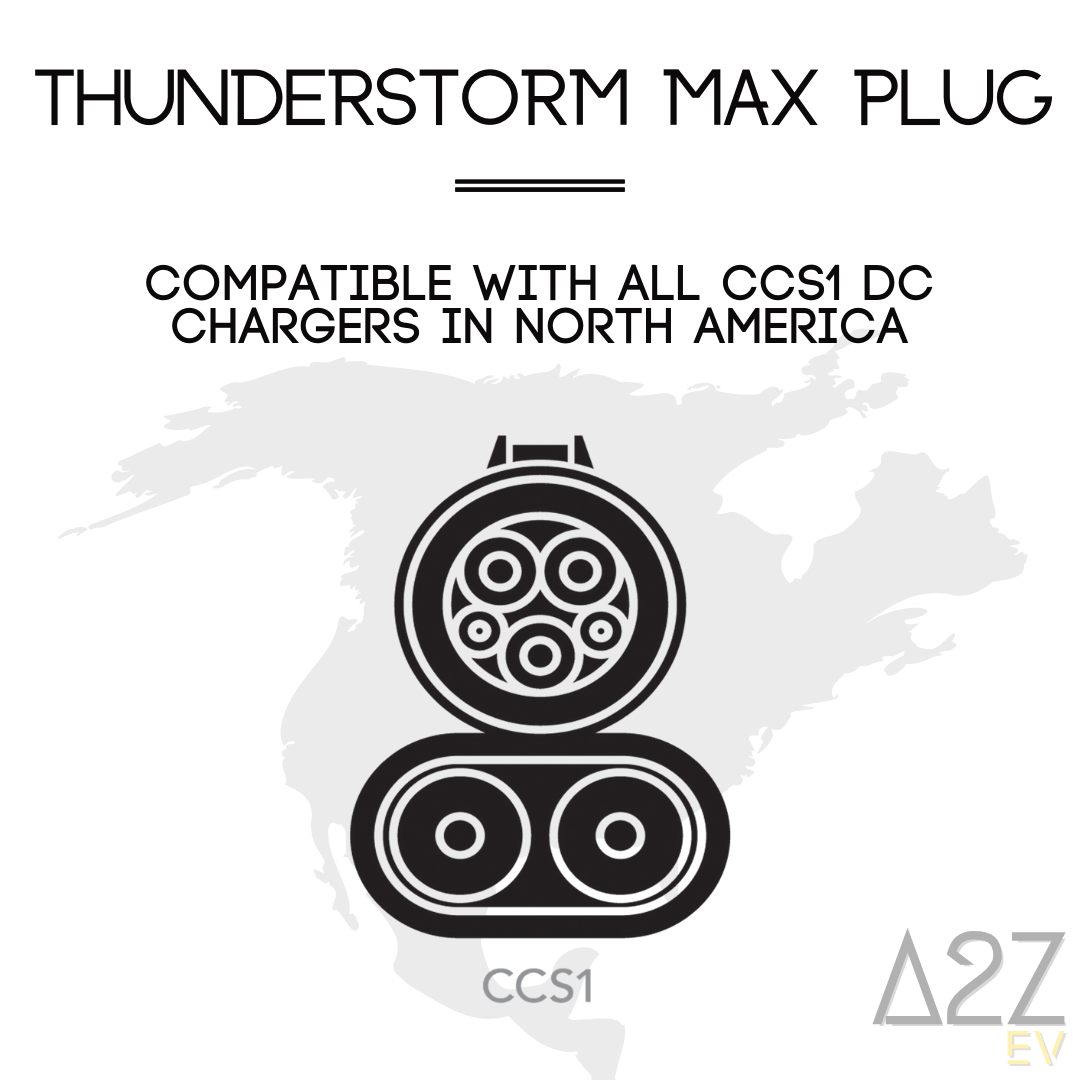

- Any CCS1 compatible DC fast charging station.
- Cybertruck.
Built for Safety: For added safety, the A2Z Thunderstorm Max Plug incorporates two temperature sensor switches. The first sensor derates the charging process upon reaching a certain temperature, while the second sensor halts charging, the temperature are strategically placed within the adapter. Charging can resume once the temperature normalizes and the adapter is reconnected.

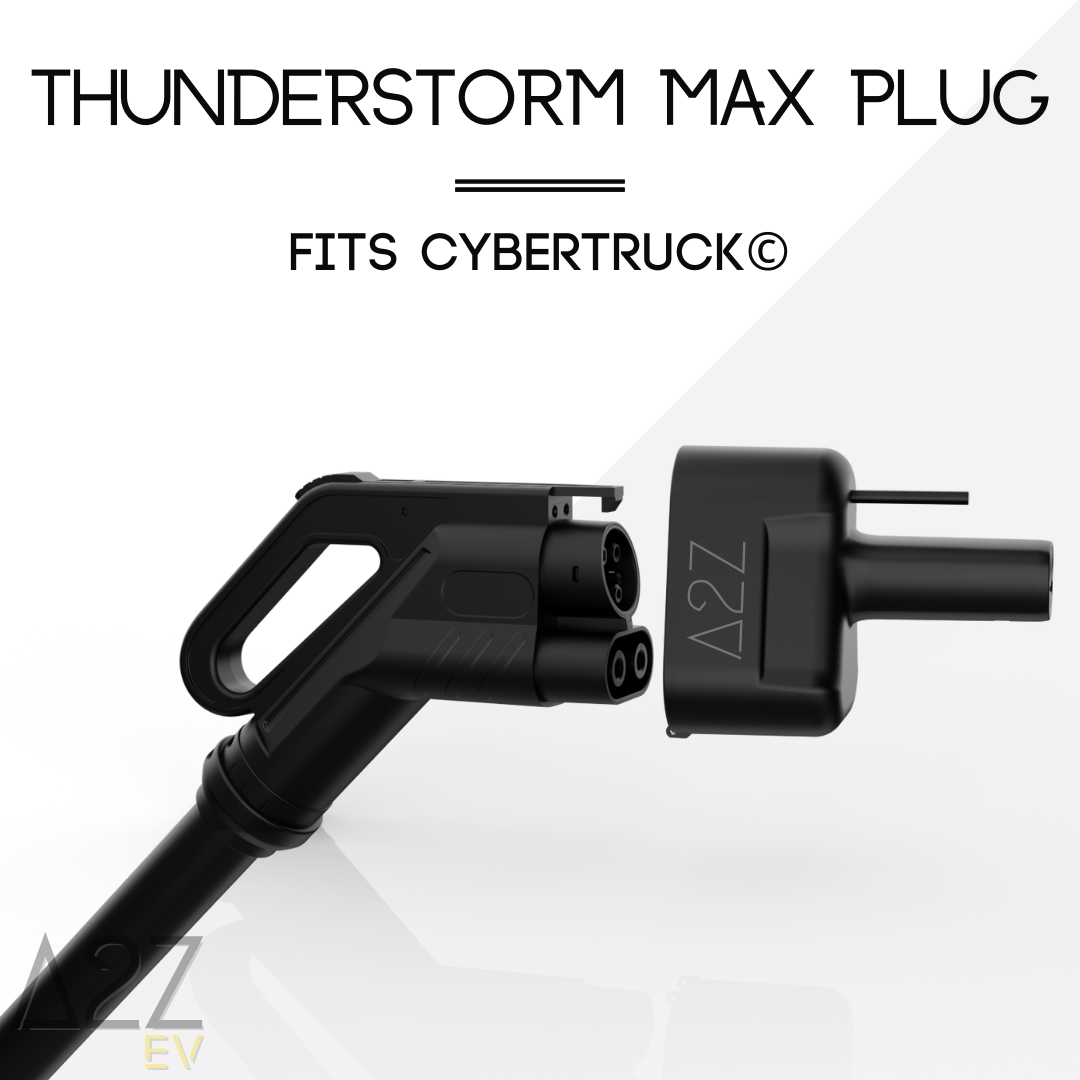

Easy to Use: Plug the A2Z Thunderstorm Max Plug into the charging station, then into your vehicle. To unplug, simply authorize from your vehicle or phone.
Specifications :
- Rated Current : With Liquid cooled cables : up to 500A // Non-liquid cooled cables : 300A
- Rated Voltage : 1000VDC
- Conductor Material : Silver plated copper
- Contact resistance : 5 mΩ
- Shell Material : UL-94-V0 PA66
- Operating Temperature : -30°C to 50°C.
- Thermal monitoring : Dual over-temperature sensor switches
- Sealing gasket : Silicon rubber.
- Locking : locking pin retains the CCS1 latch in place
- Enclosure Type : Type 3R
For more detailed specs, contact us.
Product certifications :
- UL2252/CSA-C22.2 Certified - 80265272
- CE certified - HUAX241009091KC
Inside Your Package :
- A2Z Thunderstorm Max CCS Combo 1 Adapter.

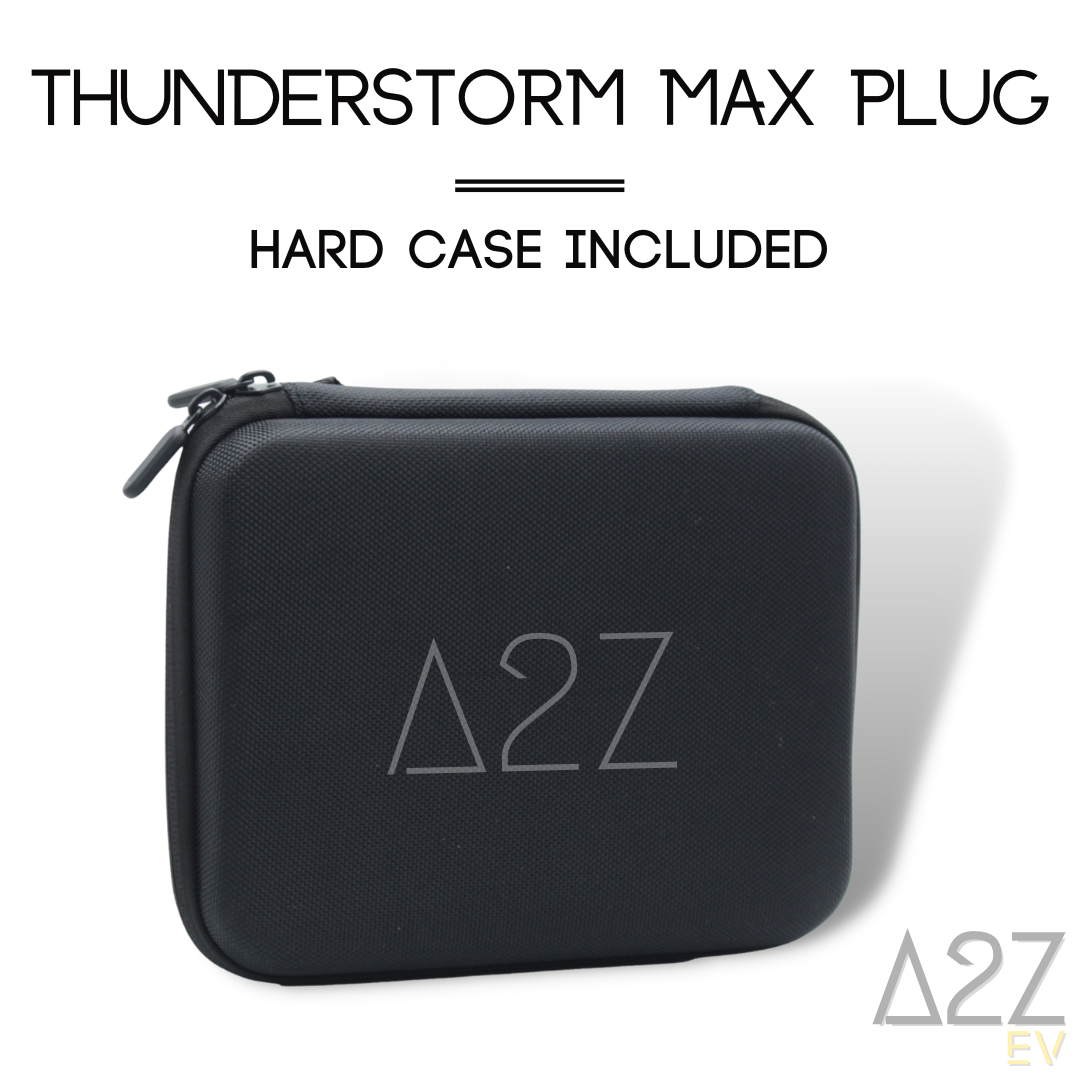

- Protective Hard Case.
Warranty: Enjoy a 12-month warranty against manufacturing defects. Note: Warranty doesn't cover misuse, mishandling, negligence, accidents, or modifications.
Our warranty only covers manufacturing defects.
Consult the warranty section for more information.
Our Products Are Partially Assembled and Tested in Canada 🍁
