Description

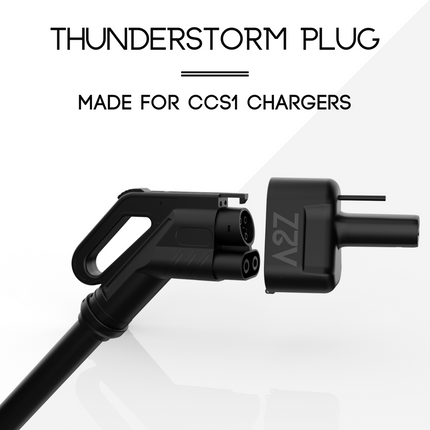

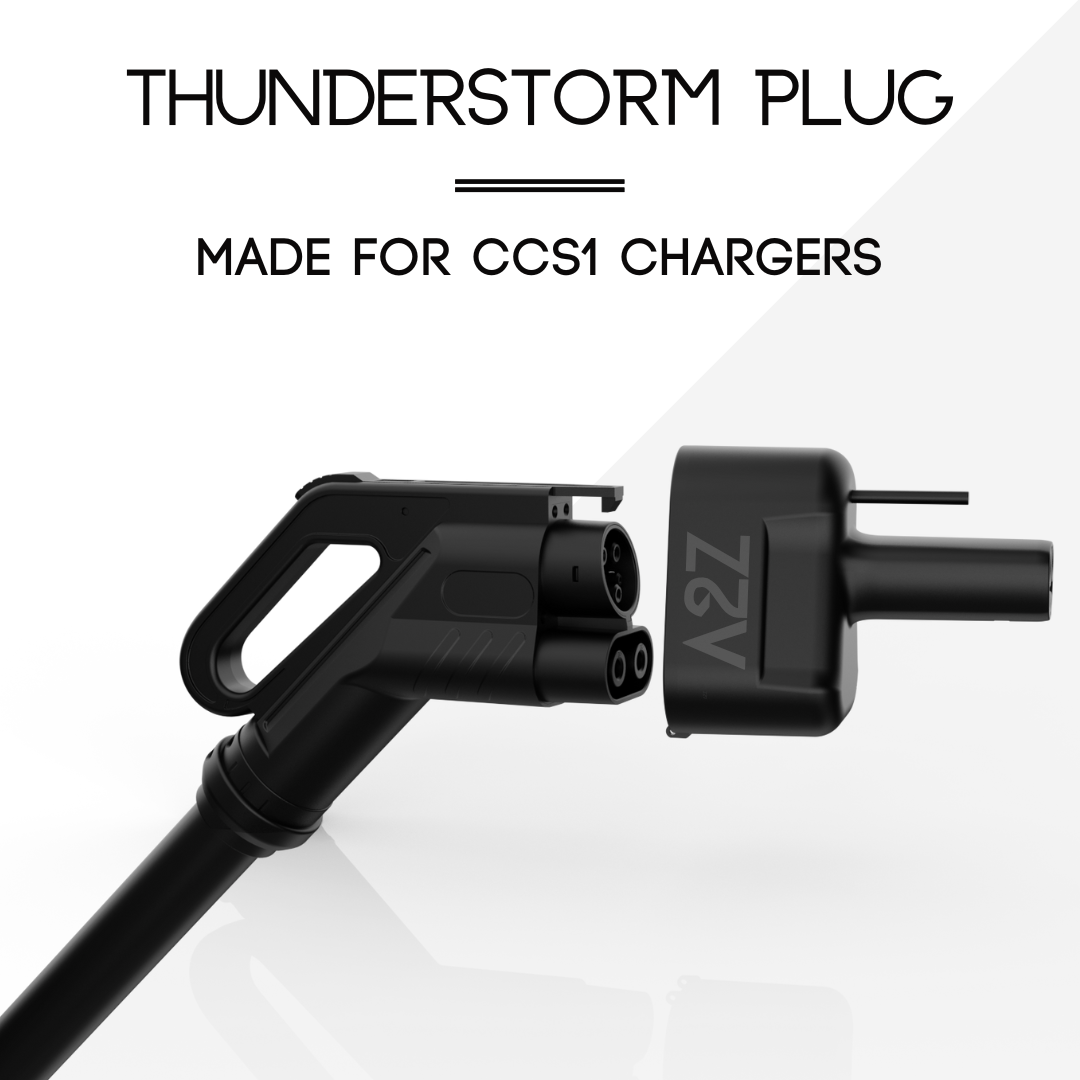

The first UL2252/CSA-C22.2 certified CCS1 to NACS adapter.

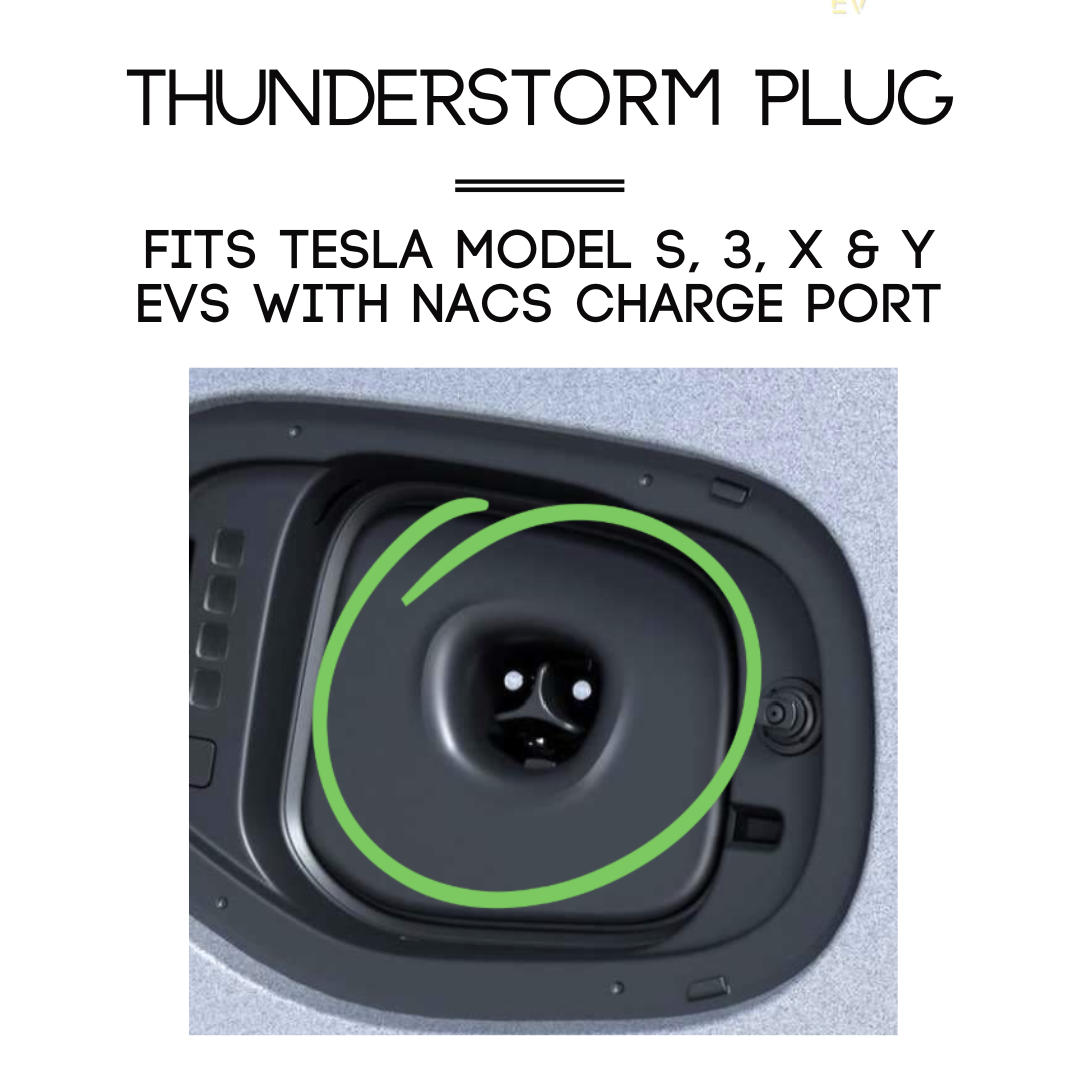

If your vehicle has the below NACS charge-port (inlet), it works. Our adapter is based on the J3400/1 (NACS) standard's clearance, it fits regardless of the car brand or model :
Currently compatible vehicles :
- 2020-2026 Tesla Model S, 3, X & Y
- 2026 Kia EV3, EV5, EV6 and EV9 -> Must have NACS inlet
- 2025-2026 Hyundai Ioniq 5 and Ioniq 6-> Must have NACS inlet
- 2025 Lucid Gravity
- 2026 Rivian R1S and R1T
- & more.
Key Features :
- Power : DC charging

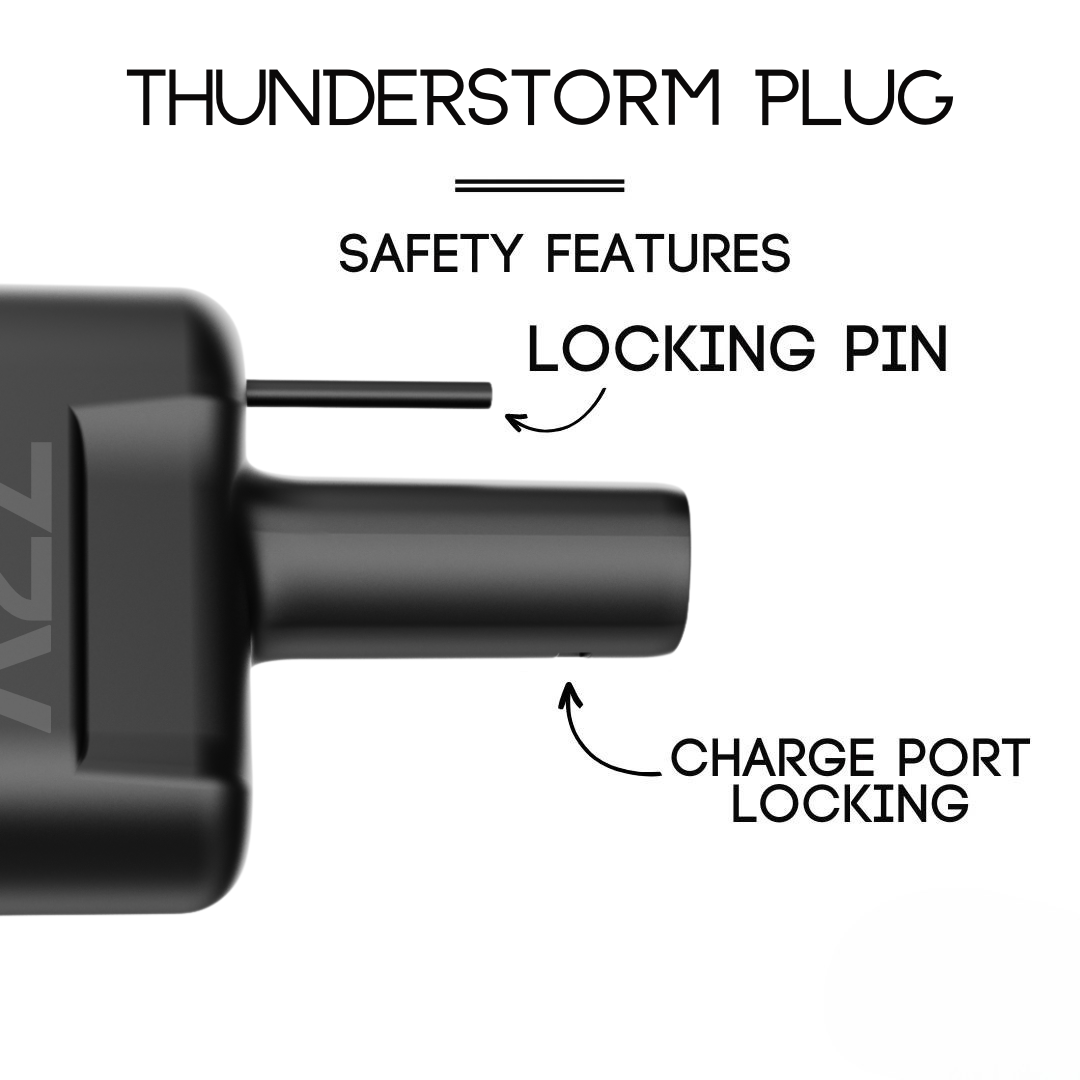

- Safety and Security: Our adapter locks in while charging, ensuring no unplanned disconnections or thefts. Includes an interlock safety pin preventing accidental removal of charging connector while charging. Unplug it with authorization from your car, phone or charging station's control panel.

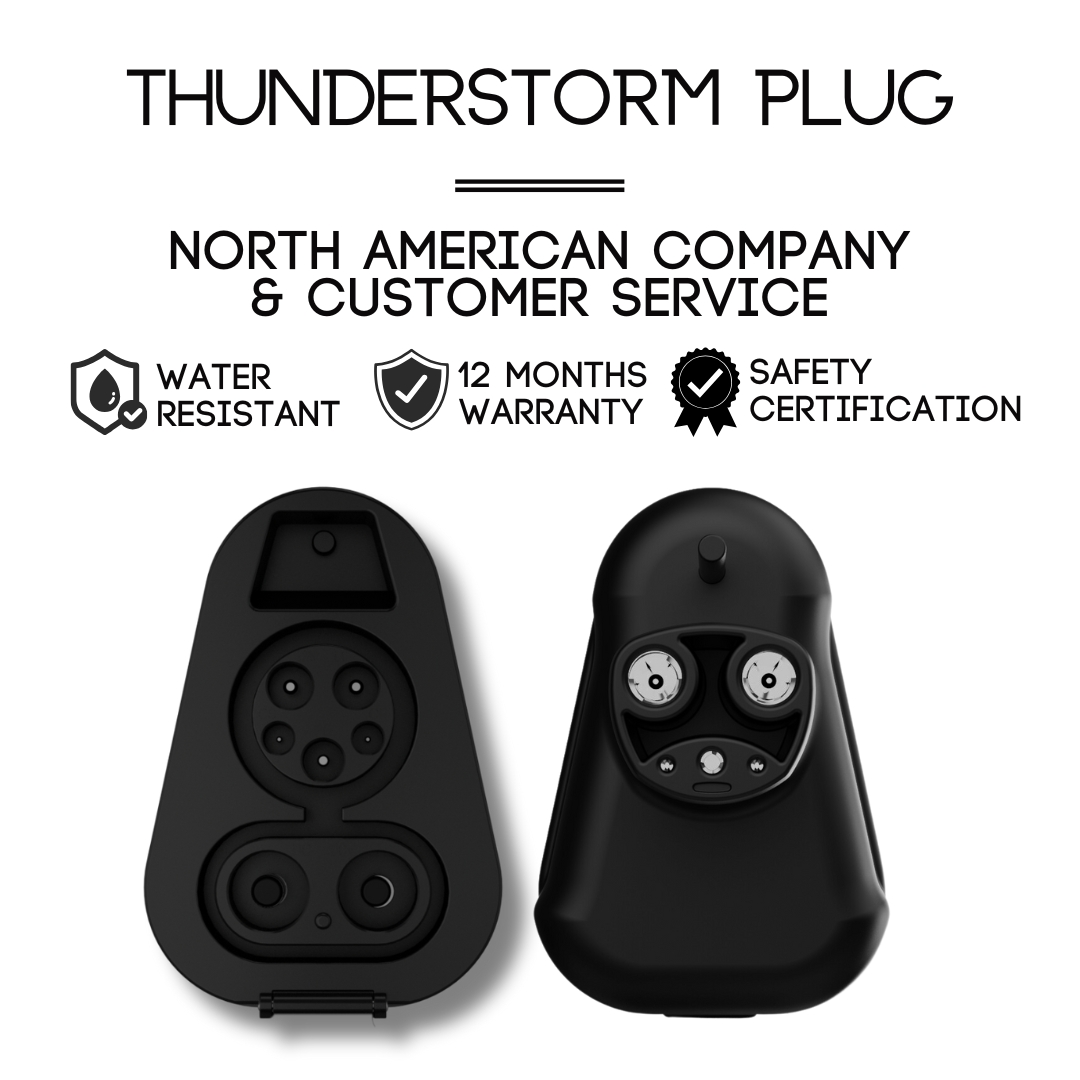

- Protection : IP54 protection from dust and water. Includes a hard case.

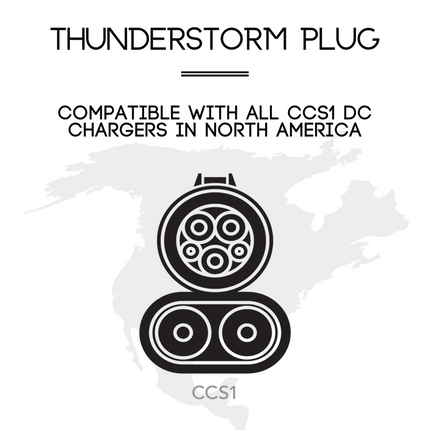

- No restrictions : Compatible with over 20,000 DCFC chargers in North America.
Requirements :
- For the North American market.
- Any CCS1 compatible DC fast charging station.
- NACS vehicles (2026 Hyundai, KIA models & Lucid Gravity).
- Model S, 3, X & Y
- For Tesla : CCS Adapter Support : Enabled*
*See ''additional vehicle information'' section in your car settings.
About the Product: Take your road trips to the next level with A2Z EV's CCS combo 1 adapter, suitable for North American and South Korean NACS vehicles. Compatible with Model S, 3, X & Y and any CCS1 DC fast charging station (see 'additional vehicle information' in your car settings).
Built for Safety: For added safety, the A2Z Thunderstorm Plug incorporates two temperature sensor switches. The first sensor derates the charging process upon reaching a certain temperature, while the second sensor halts charging, the temperature are strategically placed within the adapter. Charging can resume once the temperature normalizes and the adapter is reconnected. It's worth noting that during real-life testing, thermal shutdown was never reached.
Easy to Use: Plug the A2Z Thunderstorm Plug into the charging station, then into your vehicle. To unplug, simply authorize from your vehicle or phone.
Specifications :
- Rated Current: With Liquid cooled cables : up to 500A // Non-liquid cooled cables : 300A.
- Rated Voltage: 1000V
- Conductor Material : silver plated copper
- Shell Material : UL94V-0
- Operating Temperature : -30°C to 50°C
- Thermal monitoring : Dual over-temperature sensor switches
- Locking : locking pin retains the CCS1 latch in place
- Enclosure Type : Type 3R
For more detailed specs, contact us.
Product certifications :
- UL2252/CSA-C22.2 Certified - 80265272
- CE certified - BYS230223216LK
- FCC certified (EMI) - BYS220906041FK
Inside Your Package :

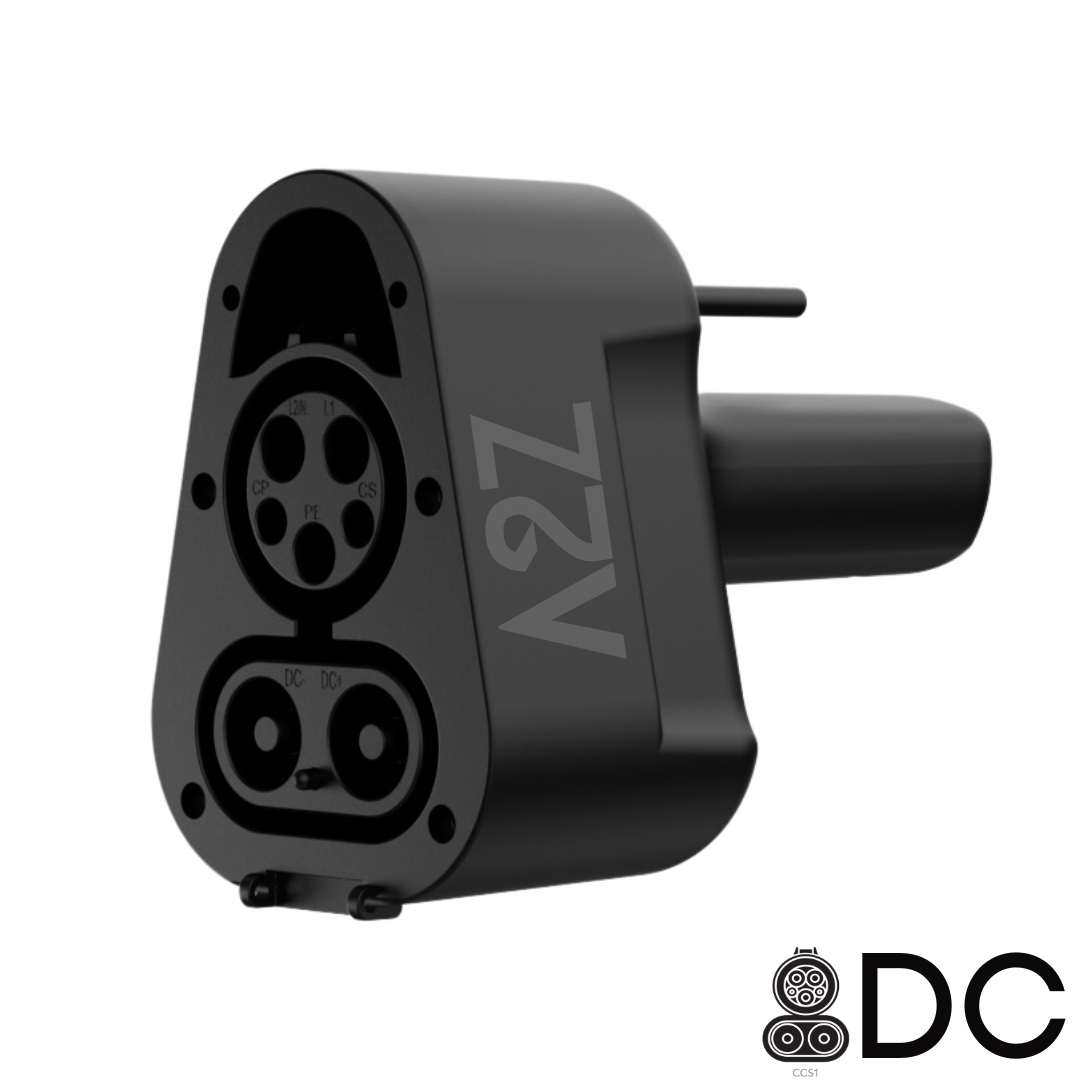

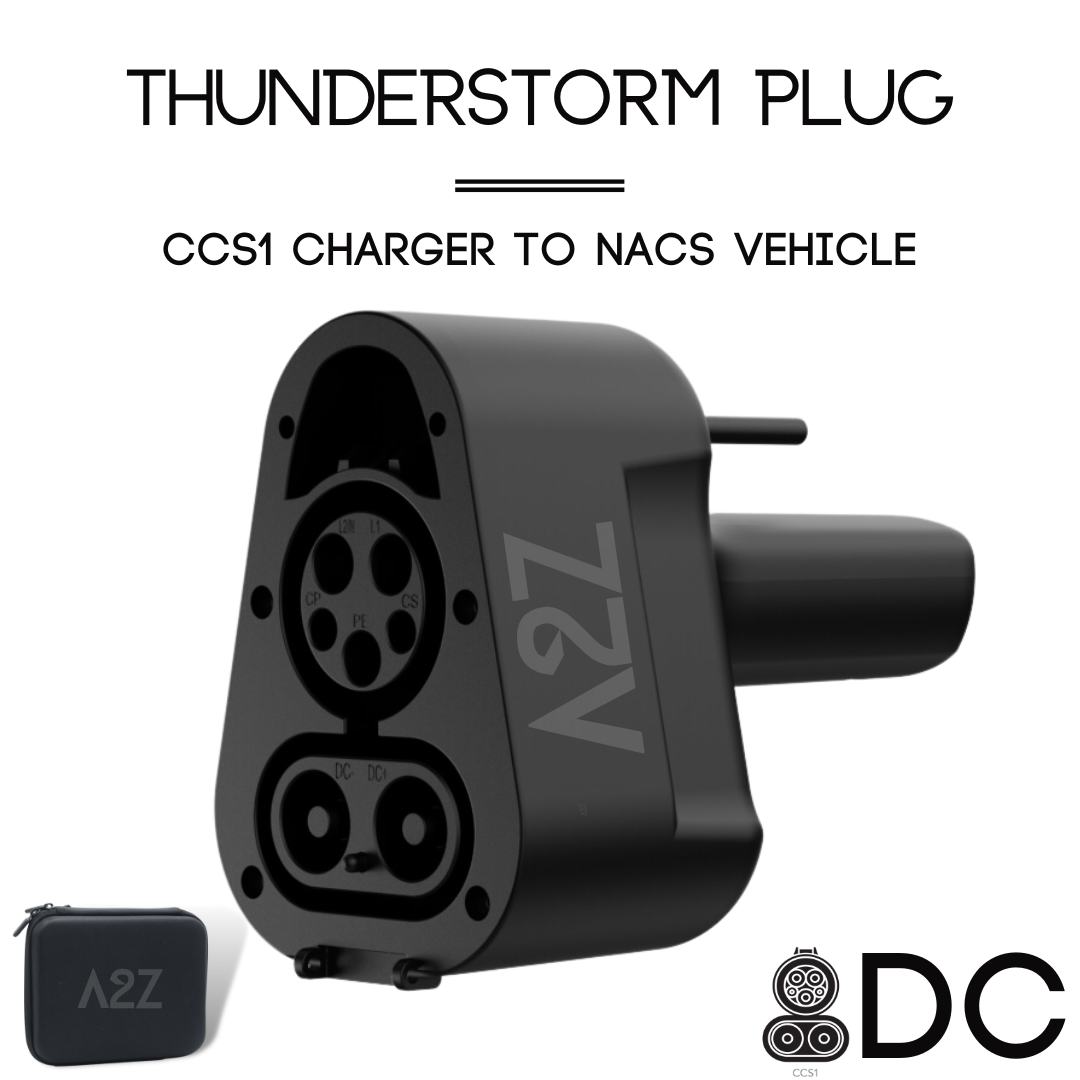

- A2Z Thunderstorm CCS Combo 1 Adapter.

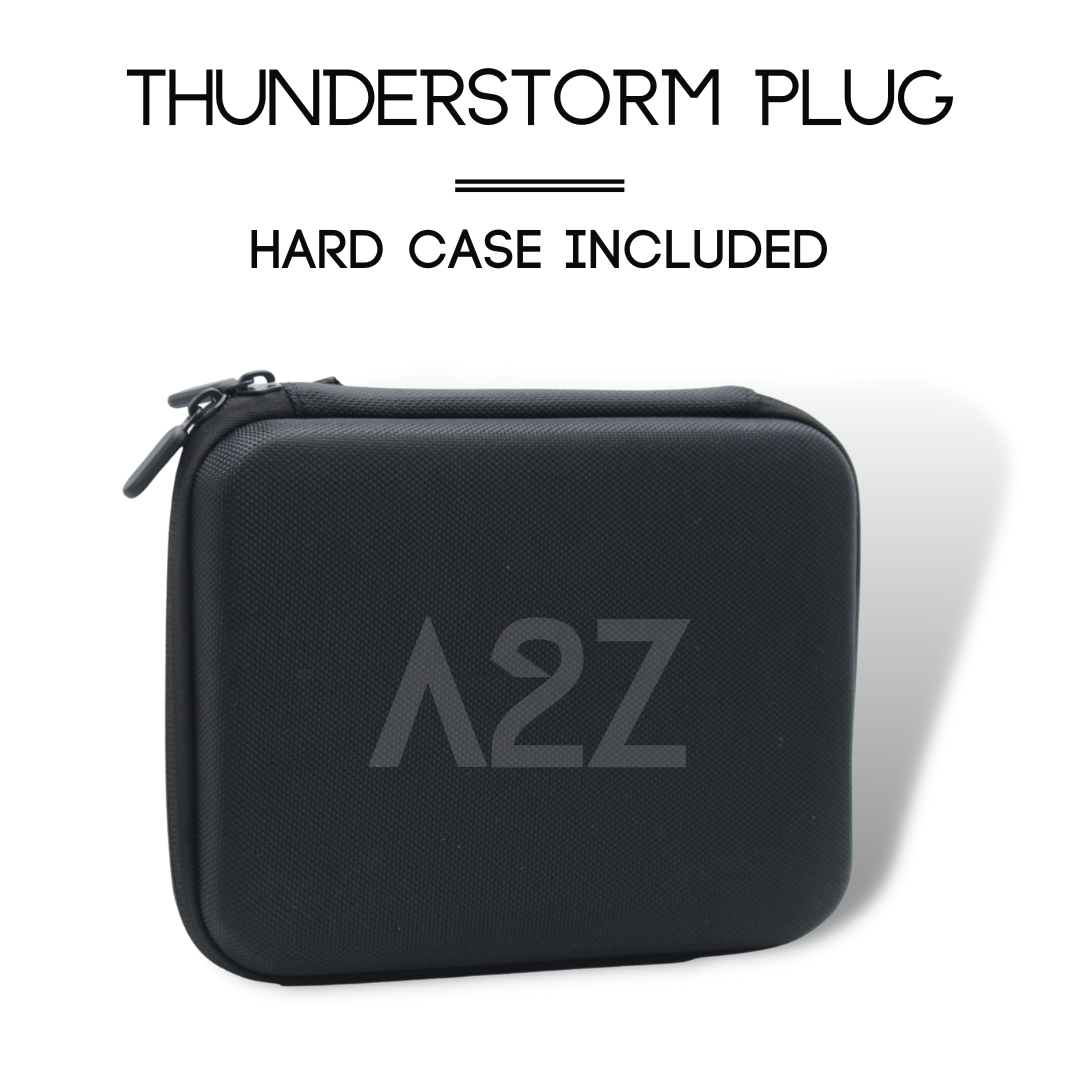

- Protective Hard Case.
Warranty: Enjoy a 12-month warranty against manufacturing defects.
Note: Warranty doesn't cover misuse, mishandling, negligence, accidents, or modifications.
Our warranty only covers manufacturing defects.
Consult the warranty section for more informations.
Our Products Are Partially Assembled and Tested in Canada 🍁
